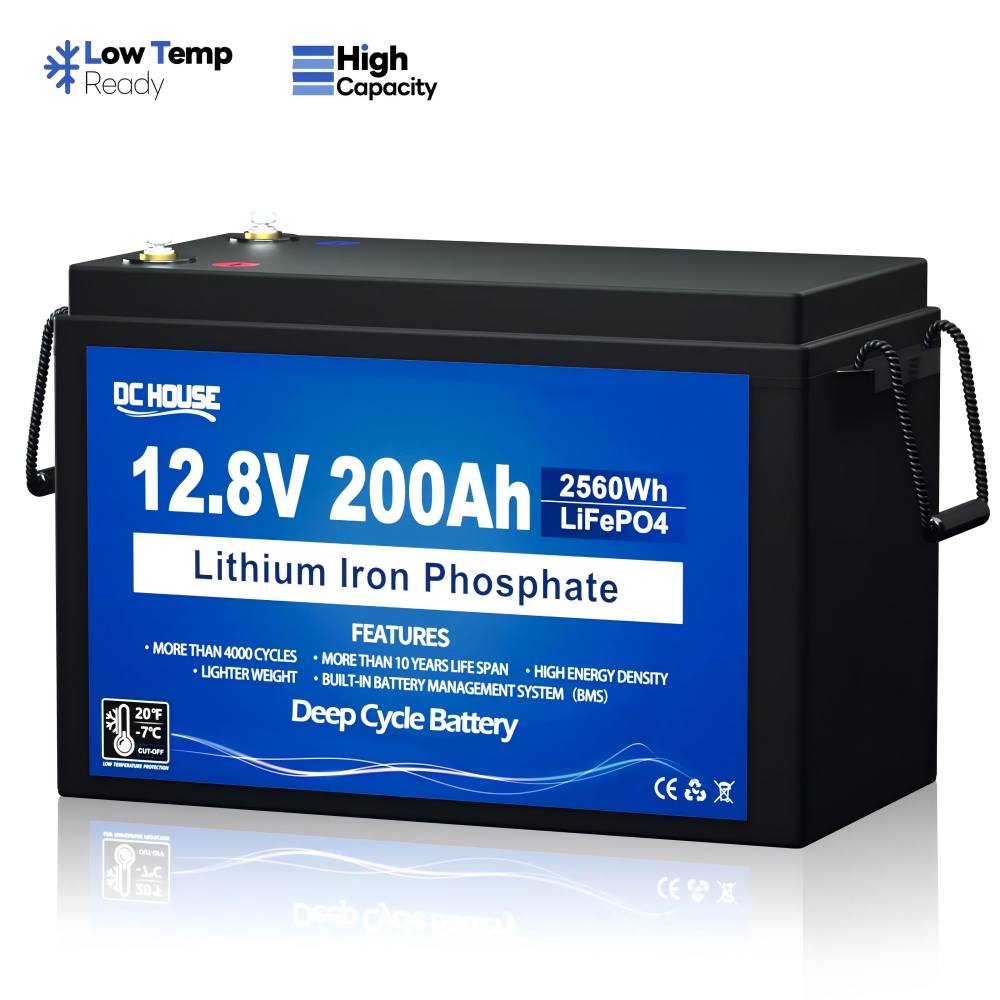

Product Overview
This is a 12V deep cycle battery for the loads that outlast a day: a caravan fridge running overnight, a trolling motor on a long drift, a cabin's lights and water pump, or the circuit that keeps a fridge and a router alive through a power cut. For most owners replacing a 12 volt deep cycle RV battery, the swap is a straight exchange. The old block comes out, this 12V LiFePO4 battery goes in, and the existing cable runs, fuse panel and inverter stay where they are. Two things are worth being clear about first. This is a storage pack, not a motor starter battery: it releases energy over hours rather than in the burst an engine needs to crank, so it belongs on the house side of the system. And it is a genuine lithium deep cycle battery, built to be drawn down and recharged over and over, where lead-acid deep cycle batteries are happiest kept near full.
Key Features
- Built for a decade of cycling. The 12V LiFePO4 battery is rated for more than 4000 deep cycles, against roughly 300–400 for a lead-acid equivalent, which is where its working life comes from. - No memory effect. Part-charging after a short run does no harm, so you can top up whenever power is available instead of waiting for a full discharge. - Low self-discharge. Left charged, the pack still holds useful energy after up to a year in maintenance storage — handy for a caravan or boat laid up for the winter. - Maintenance-free. No watering, no equalising charge, no terminal corrosion to scrape; the management system looks after the cells between trips, whether the pack is in a caravan or a deep cycle marine battery 12V setup. - Steady output under load. Voltage stays flat as the pack drains, so inverters and 12V appliances see a consistent supply instead of the sag deep cycle batteries show in their last third.

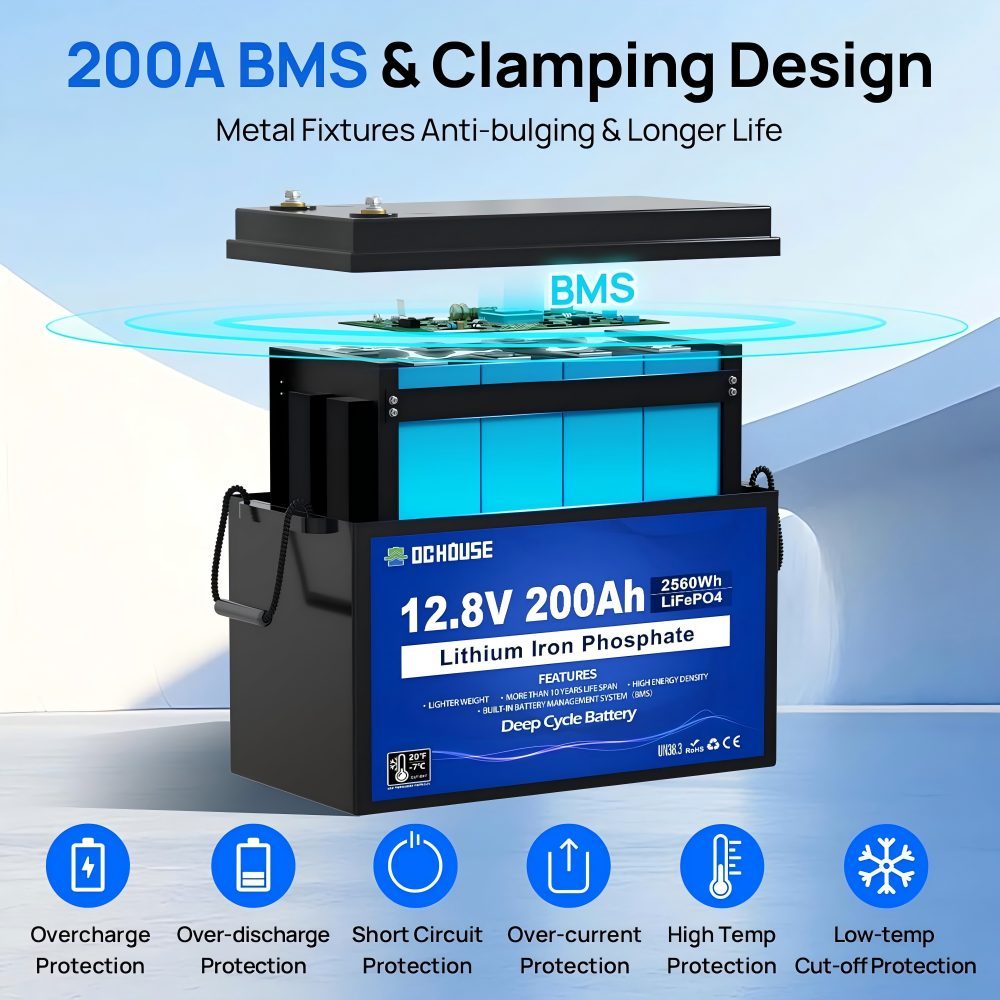

Battery Management & Safety Design
- Overcharge protection. The management system stops charge current once the pack reaches full, so a solar controller or shore charger left connected cannot overfill the cells.
- Over-discharge protection. If a load drags the pack below its safe floor, the output is disconnected before cell damage begins; the pack then needs a charge before it will wake up again.
- Over-current protection. A draw beyond the pack's rating trips the system rather than overheating the internal connections.
- Short-circuit protection. A dropped spanner across the terminals is caught in the same layer of protection.
- Temperature monitoring. Cell temperature is watched during charge and discharge alike, and current is limited or cut if the pack runs outside its comfort band.
- Low-temperature charge cut-off. Charging a LiFePO4 cell below freezing can plate lithium onto the anode and permanently reduce capacity. This pack refuses charge current until the cells warm up, while discharge stays available — which is exactly what lets a 12 volt deep cycle RV battery on a cold-weather trip keep drawing power even when the charger is locked out.
- Cells held mechanically. The cells sit in a compact arrangement clamped by metal fixtures rather than adhesive or foam alone, so the vibration a marine deep cycle battery sees in a caravan, boat or trailer does not work them loose over the seasons.
- Independently tested. The pack is certified to UL and UN38.3, covering both its electrical safety and its suitability for transport.
RV and Caravan Power
- Add up the daily load. Lights, water pump, fridge control board, fans, phone and laptop charging, a CPAP machine — write down the watts and the hours, because that total decides whether one 12V LiFePO4 battery is enough or whether you should plan for two.
- Mount it where the old block sat. A 12 volt deep cycle RV battery of this size drops into most existing trays, and the moulded handles make it a one-person lift in place of the bank that used to need two people.
- Add an inverter for mains appliances. Size it against the pack's continuous and peak ratings rather than the appliance label alone, and leave headroom for start-up surges.
- Plan the recharge. Roof solar through a controller, a DC-DC charger from the alternator, or shore power at a campsite — most touring setups end up using two of the three.
- Travel in cold weather. Winter touring is where the charge cut-off matters: the pack happily runs the heating and the lights, and simply waits for warmer cells before accepting a charge from the panels or the alternator.
- Live with it day to day. An RV deep cycle battery with a flat discharge curve keeps the lights bright and stops the fridge tripping out as the pack drains — the difference most owners notice in the first week.
Applications & Use Scenarios
- Boat and trolling motor. Run a trolling motor for a full session and still keep reserve for the run back — repeated deep discharges are exactly what this pack is built for.
- Marine house loads. Navigation lights, fish finder, bilge pump and radio draw a modest, steady current all day; a deep cycle marine battery 12v pack with a flat discharge curve keeps them running without the voltage fade that dims lamps on lead-acid.
- Coastal and inland fishing boats. A marine deep cycle battery that does not need watering between trips, and that can be charged from shore power, an outboard's charging circuit or a small panel on the dock.
- Off-grid cabin. Lights, a router, a water pump and device charging, cycled daily and topped up from panels or a generator.
- Home backup circuit. A transfer switch or a small inverter fed from the pack will hold a fridge, router and a few lamps through an outage without the noise of a generator.
- Remote workshop and site power. Tools, lighting and battery charging on a job with no mains supply, where the pack has to be moved and recharged every day.
- Golf cart accessories. 12V lighting, a stereo or a winch feed on a cart whose traction pack is a separate, higher-voltage system.
- Events and remote sites. Market stalls, temporary lighting and monitoring cabinets that need a quiet, fume-free supply.
Off-Grid Solar Energy Storage
An off-grid array is only as good as the reservoir behind it, and that is the job here: panels and an MPPT controller produce, the battery stores, an inverter converts. 12V-class MPPT controllers, 12V inverters and 12V DC distribution are widely available and inexpensive next to higher-voltage gear, which makes a single-pack cabin or workshop system — or a deep cycle marine battery 12V setup on a boat — realistic to assemble in a weekend. Charging is your controller's job. Set it to a LiFePO4 profile, switch the equalisation cycle off, and set the absorption and float stages to suit the pack's charging voltage. Because voltage barely moves as this pack drains, a controller judging state of charge from voltage alone will be less precise than it was on lead-acid deep cycle batteries; a shunt-based monitor is worth adding if you want an honest percentage on the wall. Winter is where the cold-charge protection earns its place. A bright cold morning will have the panels producing while the pack is still below freezing, and the battery simply refuses that current until the cells warm — no damage, no drama, and nobody needs to babysit the array. If you expect the system to grow, extra units can be combined in the series and parallel arrangements listed with the specifications, so moving to a 24V or 48V bank is a matter of adding packs rather than replacing the RV deep cycle battery you started with.
Specifications
| Name | 12V 200Ah LiFePO4 deep cycle battery, low-temperature cut-off, 2560Wh, built-in 200A BMS |
| Rated voltage | 12.8V |
| Rated capacity | 200Ah |
| Operating voltage | 10–14.6V |
| Charging voltage | 14.6V |
| Standard charge / discharge current | 100A / 100A |
| Maximum continuous charge / discharge current | 160A / 200A |
| Peak current | 500A for 10s |
| Series and parallel configurations | 4P / 4S / 2P2S / 2P3S / 2P4S / 3P2S / 4P2S |
| Operating temperature range | Charge 0–55 °C, discharge -20–55 °C |
| Terminal type | M8 |
| Case material | ABS |

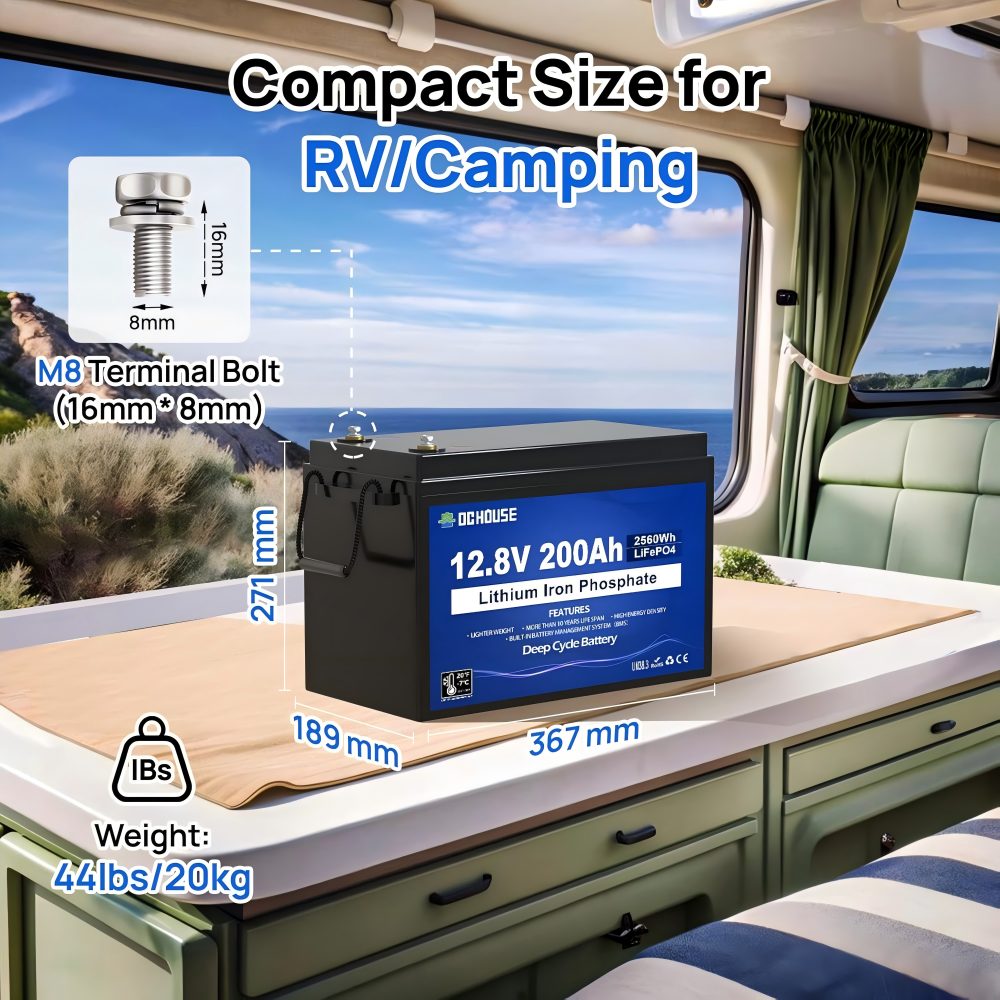

| Dimensions | 367 × 189 × 271 mm / 14.4 × 7.4 × 10.7 in |
| Weight | 20 kg / 44.1 lbs |
Ordering & Delivery
| Lead time | 3–7 days from order confirmation |
| Custom orders | Built to your specification, around 35 days before dispatch |
| Shipping | 3–7 days in transit, sent from the warehouse closest to your delivery address |
| Stock locations | United States, Europe and United Kingdom warehouses |
| Warranty | 5-year warranty |
| Returns | 30-day return window |
| Dispatch confirmation | Tracking details emailed once the parcel leaves the warehouse |
| Packing | Sealed carton with the terminal studs protected for transit |
| Safety documentation | UL and UN38.3 test reports available with the shipment |
| Larger orders | Quoted per order, with price, packing and delivery date confirmed in writing before production |
| Address changes | Accepted up until the parcel is dispatched |
About Our Company
Xinyubattery is the brand of Shenzhenshi Xinyu Newenergy Technology Co.,LTD, a Shenzhen-based company founded in 2016 and working in green power solutions for more than ten years. Through a vetted network of production partners, we bring a broad range of power products together in one place and consolidate each order for you. Products are checked before dispatch, packed for export and shipped from local stock, and our team stays available for technical advice, fitting questions and after-sales help.
FAQ
How long does a 12V 200Ah LiFePO4 battery last?
In normal deep-cycle service, many years. A lithium deep cycle battery is built to be cycled rather than kept on float, so its life is counted in charges and discharges, not months on a shelf. Shallow daily discharges and prompt recharging stretch it a long way; repeated runs to empty and long spells left flat shorten it considerably. Keep it out of a hot engine bay, top it up when you can, and it will outlast several lead-acid sets.

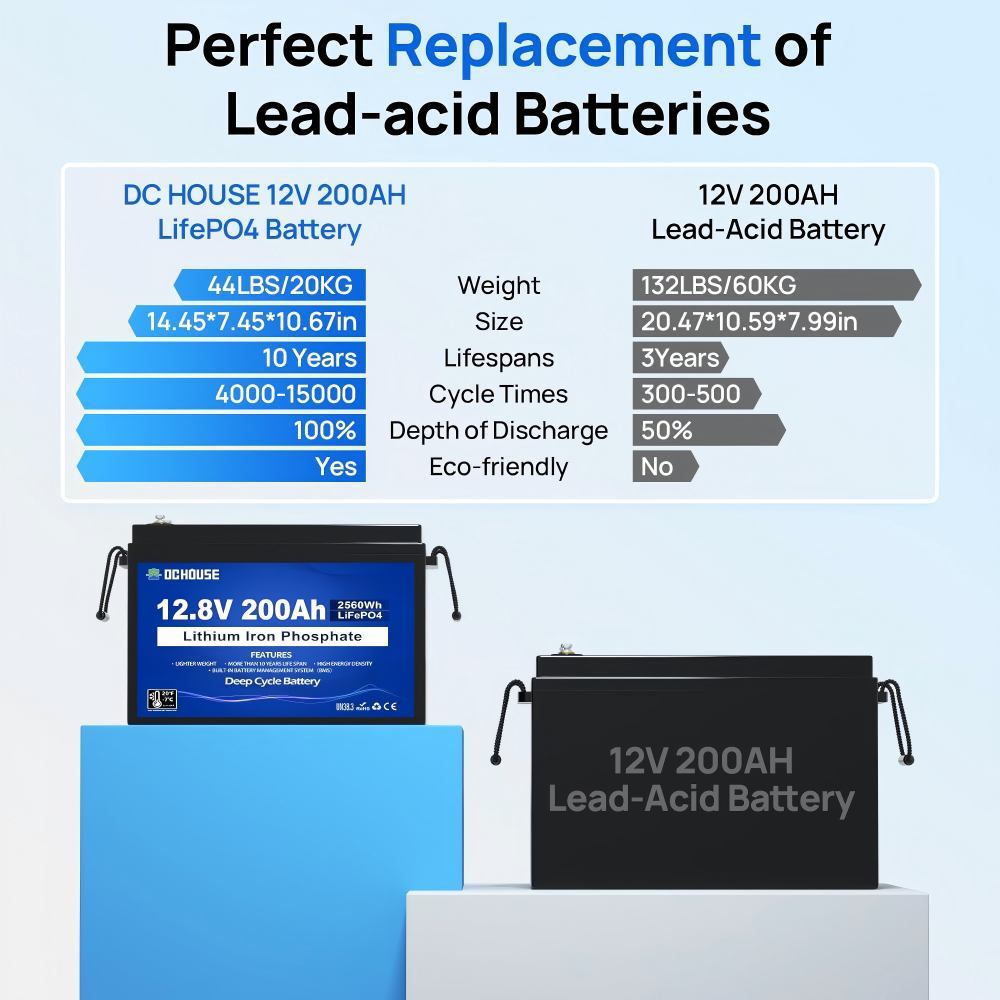

Can it replace lead-acid batteries?
In most 12V systems, yes — directly. Same nominal voltage, same terminal studs, same inverter and fuse panel. What changes is the charger: this 12V deep cycle battery needs a lithium charge profile rather than a flooded or AGM setting, and the equalisation stage has to be off. If your existing charger has no LiFePO4 mode, budget for one that does. In exchange you get a lighter pack, a much deeper usable draw and a voltage curve that does not sag.
Is it safe to use?
Yes. LiFePO4 is the most thermally stable lithium chemistry used in batteries of this kind: no cobalt, none of the thermal runaway behaviour that makes other lithium chemistries a concern in a confined space, and no acid to spill if the case is damaged. The pack also carries a full battery management system and a case that holds the cells firmly in place. The one condition worth respecting is temperature at the charging end, and the pack handles that itself.
Can it be used for solar systems?
Yes — off-grid solar is one of its main jobs. At 12.8V nominal it pairs with 12V-class MPPT controllers and 12V inverters, and the daily charge-and-discharge rhythm of an array is precisely the duty it is designed for. Set the controller to a LiFePO4 profile rather than lead-acid, and size the array to your daily consumption rather than to the battery's capacity. A marine deep cycle battery used this way can be charged from panels while parked and from shore power when you are back home.
Does it support high current devices?
Within its ratings, yes. The 200A BMS passes a continuous 200A discharge and a 500A peak for up to 10 seconds, which covers a kettle or a microwave through a suitably sized inverter, and the start-up surge of a motor. Match the inverter's continuous and peak figures to those numbers, and make sure cables and fuses are rated at least as high — the pack will deliver whatever the management system allows, so the wiring needs to be up to it.
Can I use it to start an engine?
No. Cranking calls for a short, very large burst of current, and a lithium deep cycle battery is built for the opposite duty — steady output over hours. Use it for house loads, storage and accessories, and keep a starter battery on the engine side of the system.
Will it fit where my old battery sat?
Usually. An RV deep cycle battery of this size is more compact and lighter than most lead-acid banks of similar capacity, though tray height and lid clearance vary from vehicle to vehicle. Check the terminal positions against your cable runs and confirm your lugs are ring terminals for the M8 studs. If the tray was built for a different footprint, a strap or a simple bracket is normally enough to secure it.
