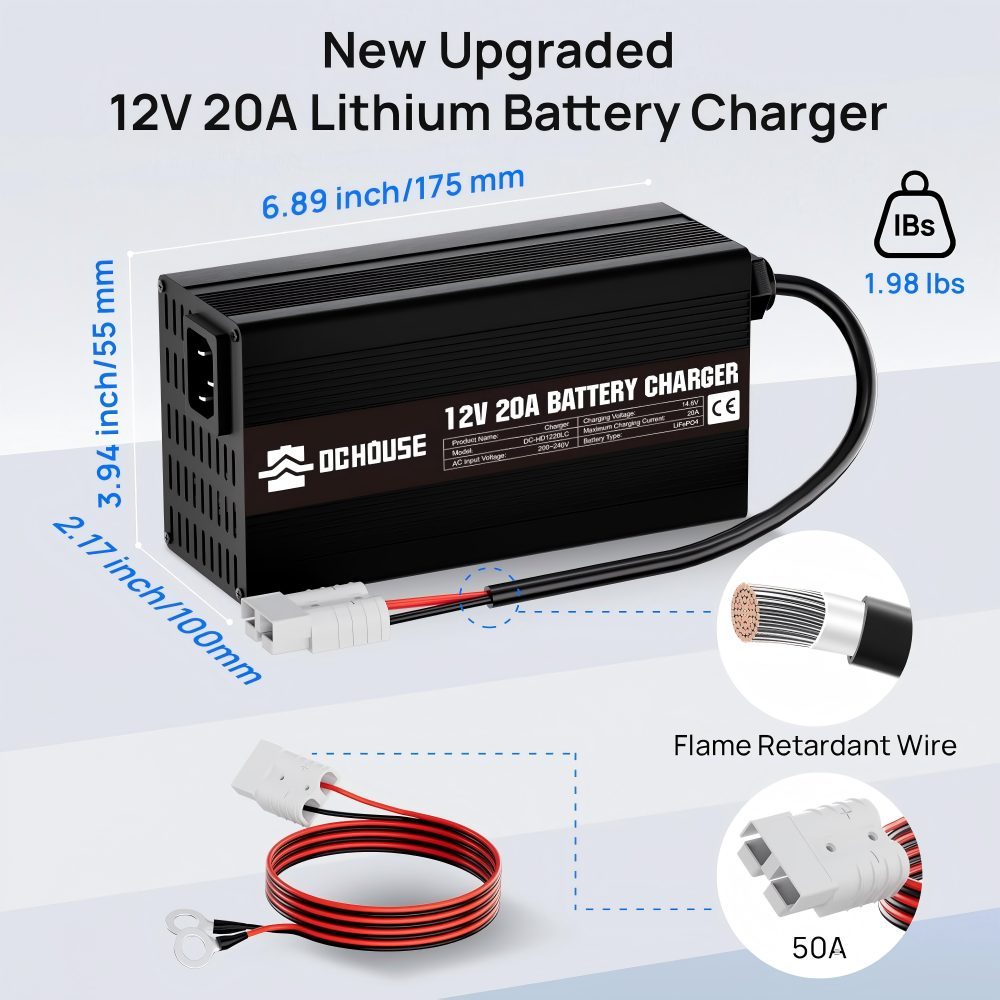

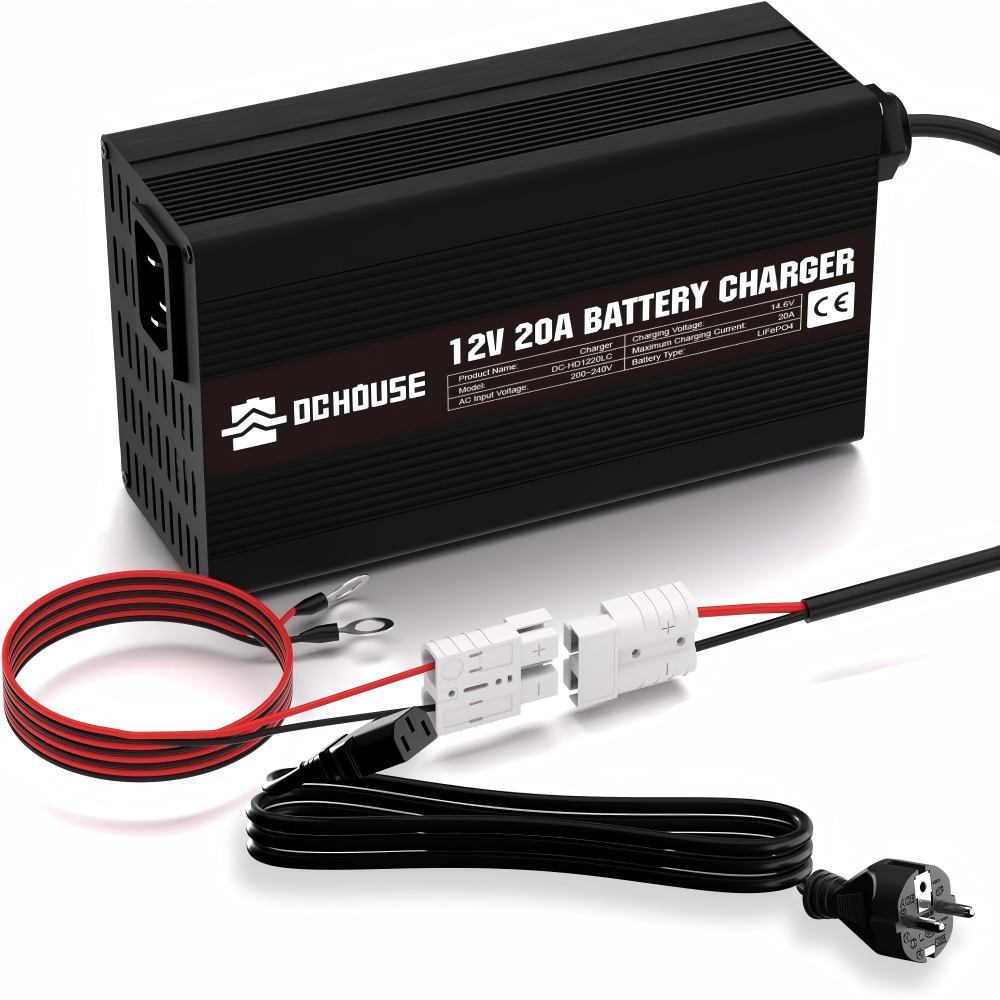

12V 20A Lithium Battery Charger Car Battery Charger 14.6V LiFePO4 Battery Charger with Battery Quick Connector LED Display Smart Fast Charging for Deep Cycle Rechargeable Battery from Boat, RV

Product Overview

A 12V lithium pack does not charge the way a lead-acid battery does, and this LiFePO4 battery charger is built around that difference: a constant 14.6V, up to 20A of current, and a profile tuned to lithium iron phosphate rather than to flooded cells.

In practice this deep cycle battery charger lives where the batteries live — the dock box, the camper locker, the workshop bench — and gets plugged in whenever a pack comes back flat. It suits the 12V side of a boat, a caravan or motorhome house bank, a trolling motor set-up, an off-grid cabin circuit, or a rotation of 12V packs used for pumps, lights and backup power.

Two things it is not: it is not a lead-acid, AGM or gel charger, and it is not an engine starting charger. Both need a different profile, and neither belongs on this unit.

If you are stepping up from a small maintenance charger, the change you notice first is time — a morning on charge instead of a whole weekend — and the second is the connection, because the battery cable stays bolted to the posts and the charger simply unplugs.

Battery Wake-Up Function

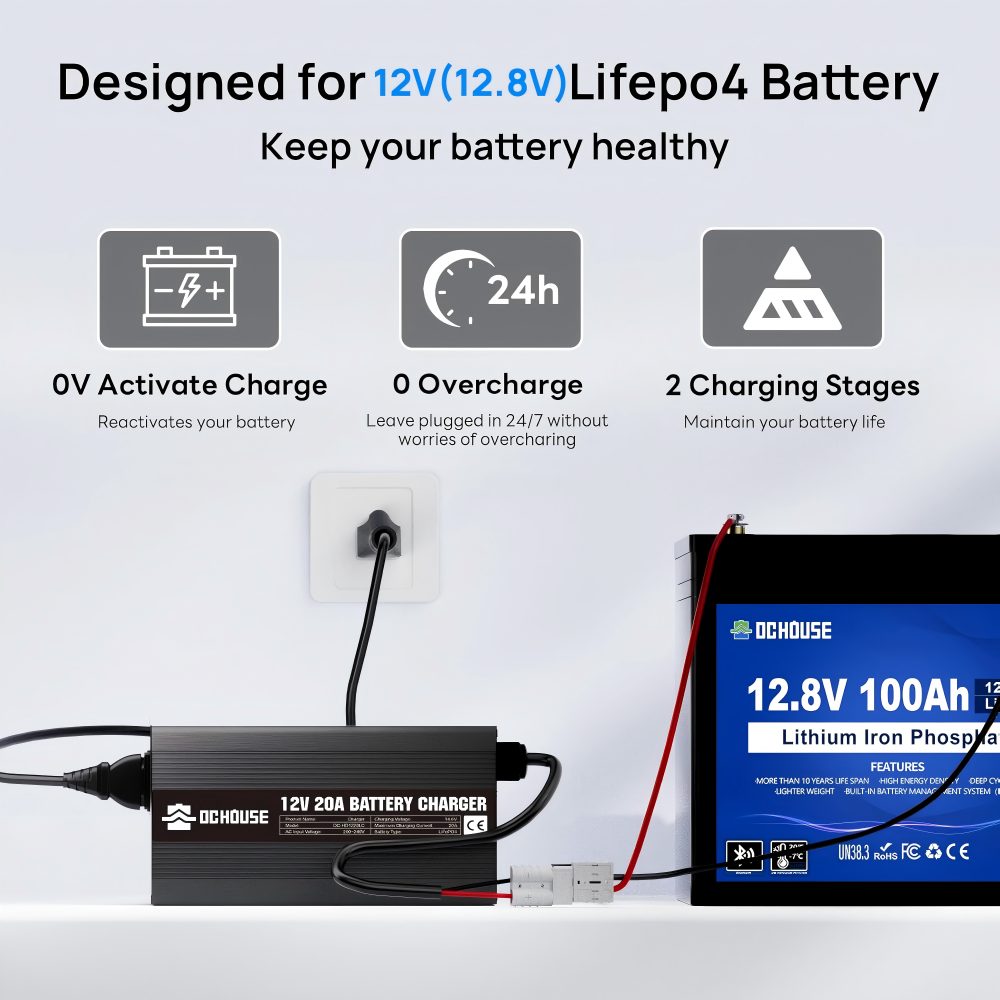

Lithium packs protect themselves. When a BMS senses over-discharge it opens the circuit, and the battery that read 12.8V last month now shows nothing at the terminals — 0V on a multimeter, and a normal charger that simply refuses to start.

This deep cycle battery charger has a 0V charging mode for exactly that situation. It applies a low wake-up current so the BMS sees a charger attached, re-closes the circuit, and ordinary 20A charging can begin. A pack that looked finished often comes back and holds charge again.

It is worth knowing the limit. A wake-up recovers a battery that is merely asleep behind its own protection circuit; it cannot rebuild a pack with a dead cell or internal damage. If the LED never leaves green, or the charger keeps restarting without the pack taking current, test the battery before you trust it for a trip.

Where this matters most is anything that sits unused — a marine deep cycle battery left on a mooring through the off-season, a camper battery parked up for months, a spare pack on a shelf. Those are the packs that trip their own protection and then get blamed for being dead.

Charging Speed & Output

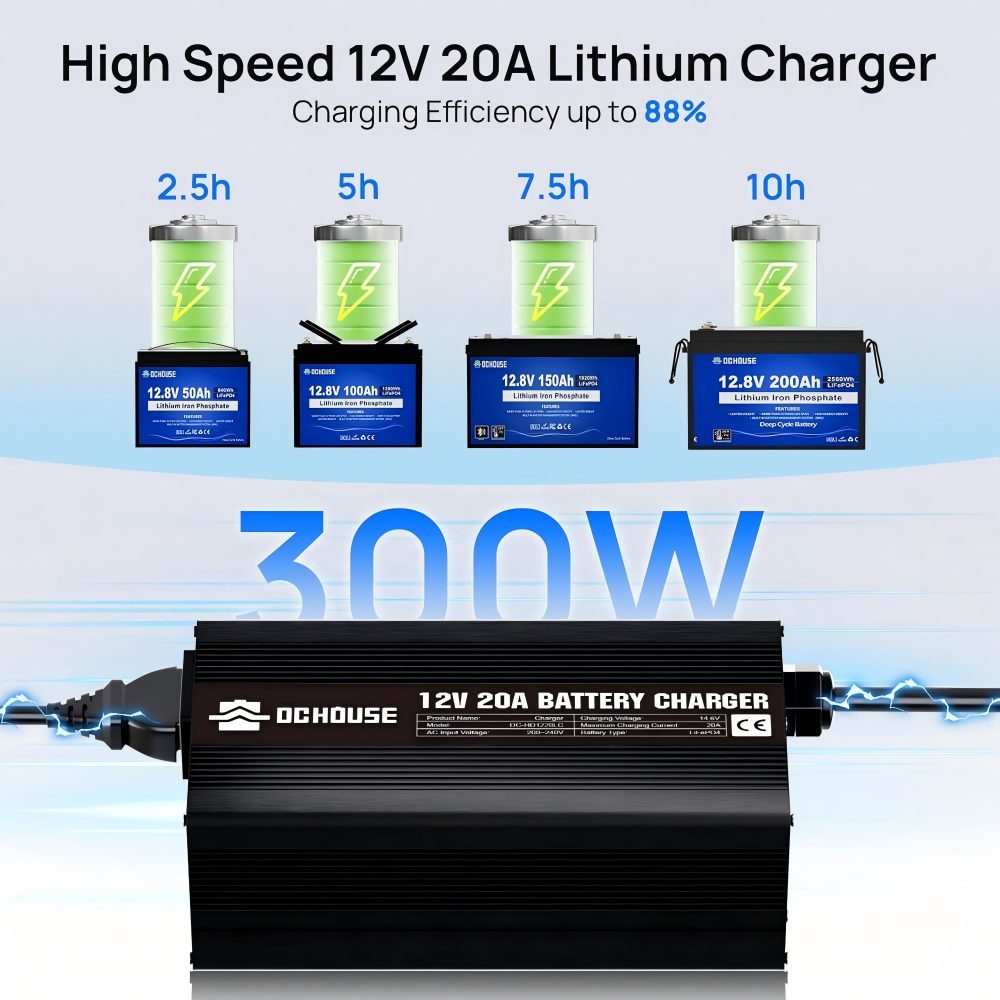

• 20A held at 14.6V, roughly 300W. That is enough output to treat this as your main charging station rather than a top-up device, and it is the figure that separates it from every 5A unit in the drawer.
• Half a pack before lunch. A 12V 100Ah battery reaches about 50% in two and a half hours on the full 20A, so a morning charge is a realistic plan for a day on the water.
• Four times the pace of a 5A unit. If you are replacing a small 5A deep cycle battery charger, the same recharge drops from a full day to a couple of hours.
• Works with the pack you already own. On a 12V deep cycle battery of 200Ah, expect roughly double the 100Ah timing — plan an overnight session rather than a lunch break.
• Lithium only, and that is the point. This is a LiFePO4 battery charger with no chemistry switch to set wrong, so there is no lead-acid mode that could sit a lithium pack at the wrong voltage.
• A taper you can plan around. Current stays high through the main charge stage and falls away as the pack approaches full, which is why the last stretch always takes longer than the first half.

Protection & Status Indicators

• Over-voltage and over-current protection. If supply or draw drifts outside the safe window for a 12V LiFePO4 battery, the charger backs off instead of pushing through it.
• Short-circuit protection. Touching the leads together, or a cable damaged in a locker, trips the unit rather than welding the connector.

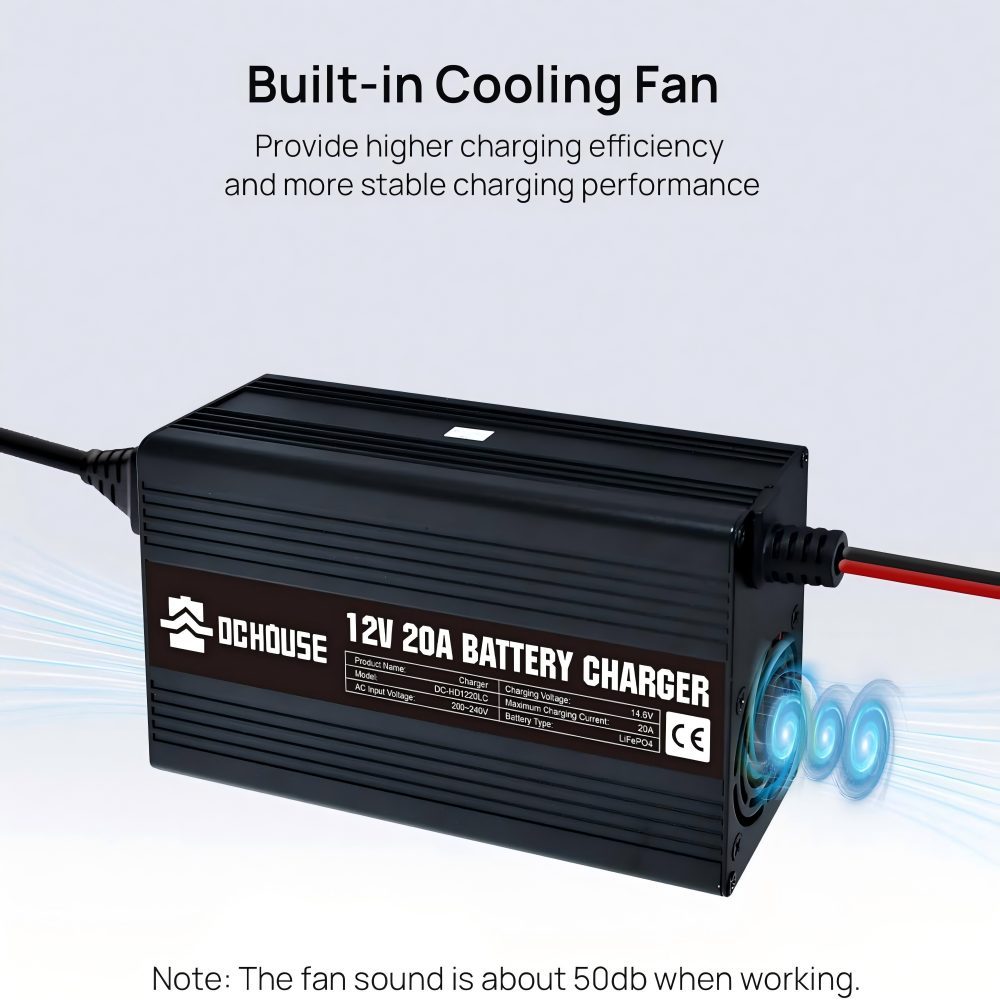

• Thermal protection with a working fan. The fan pulls air through the ribbed metal housing so the electronics stay stable during a long 20A session; expect a soft whir, around 50 dB.
• Automatic shut-off at full charge. Once the pack tops out the charger stops delivering current, which is what makes an evening charge on a deep cycle RV battery a set-and-forget job.

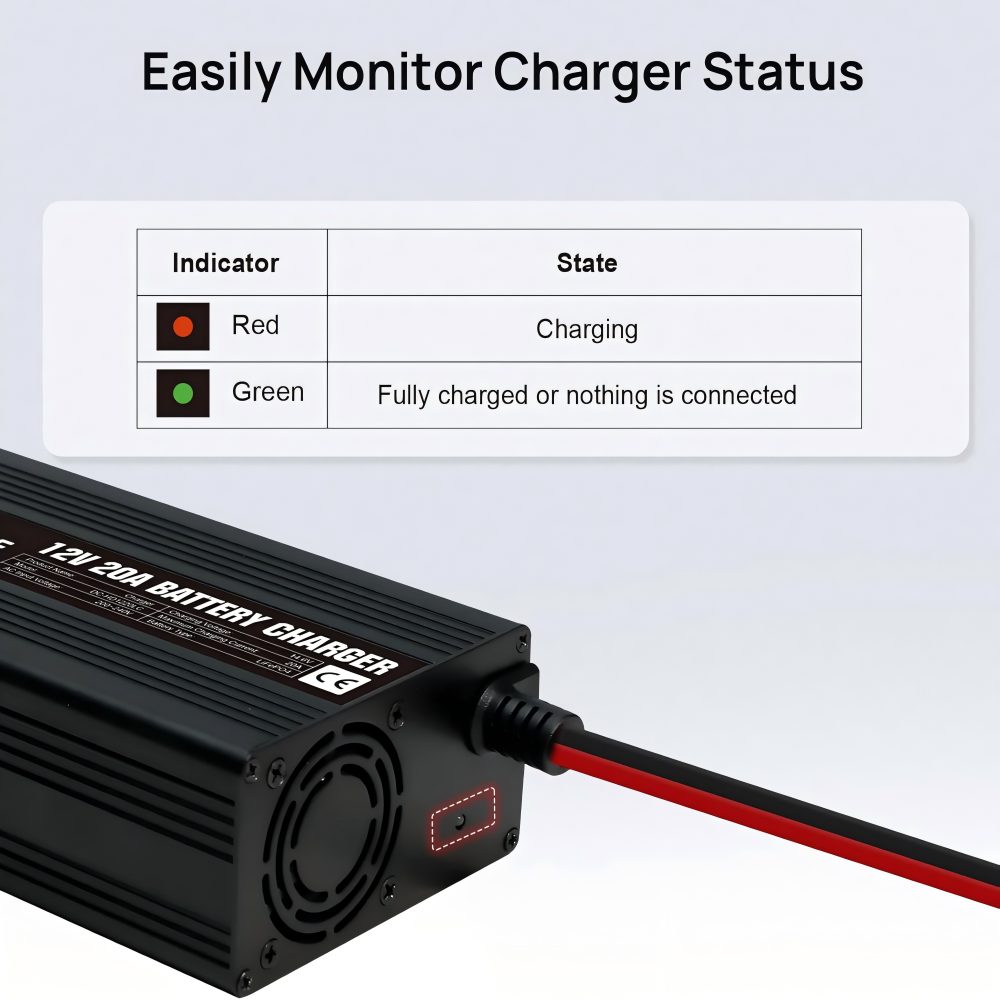

• A two-colour light instead of a screen. Red means current is flowing, green means fully charged or nothing connected — no menus, no percentage to interpret.
• Front switch and vent. The switch kills output without you pulling the plug, and the vent keeps the airflow path open while the unit is running.
• Built for dock and locker duty. As a deep cycle marine battery charger it expects to be plugged in and unplugged repeatedly around boats, so keep it on a dry surface and it will not mind the routine.
• Protection is not a substitute for a check. Look at the ring terminals each season; a corroded joint makes any charger work harder than it should.

Connection & Setup

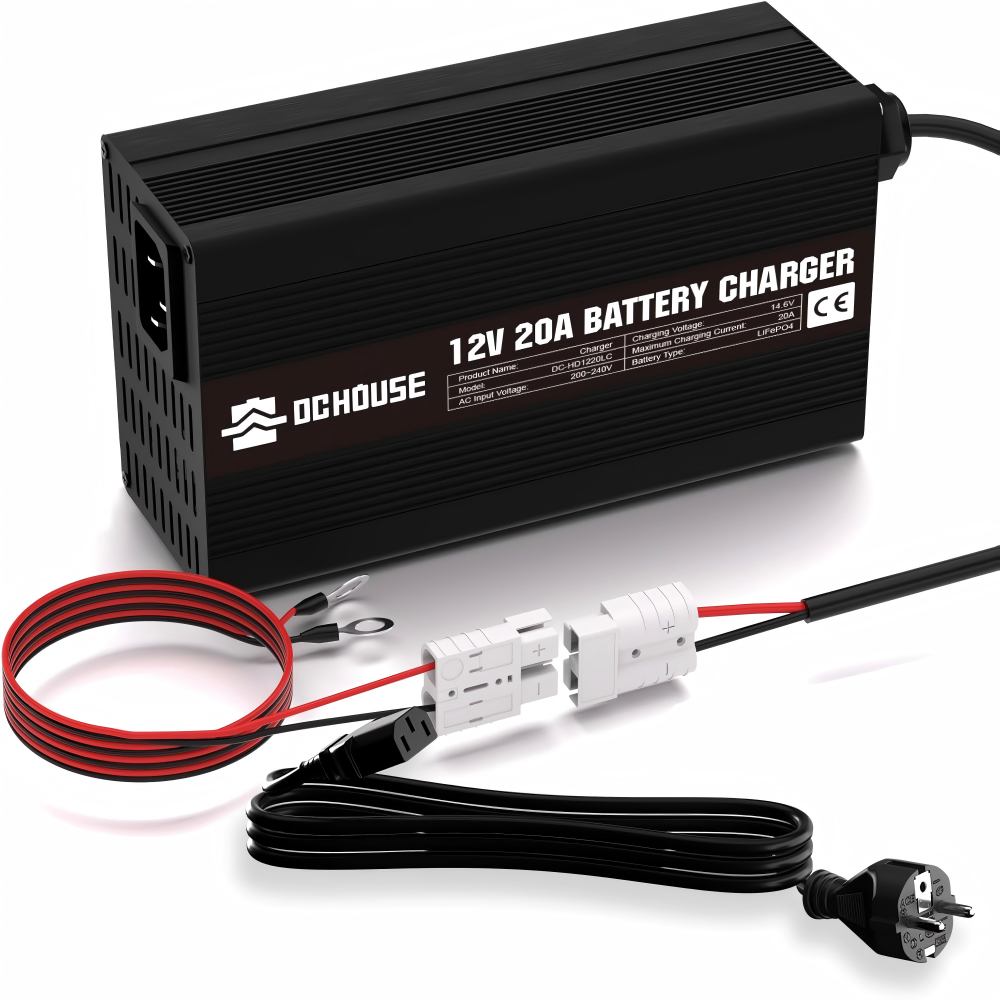

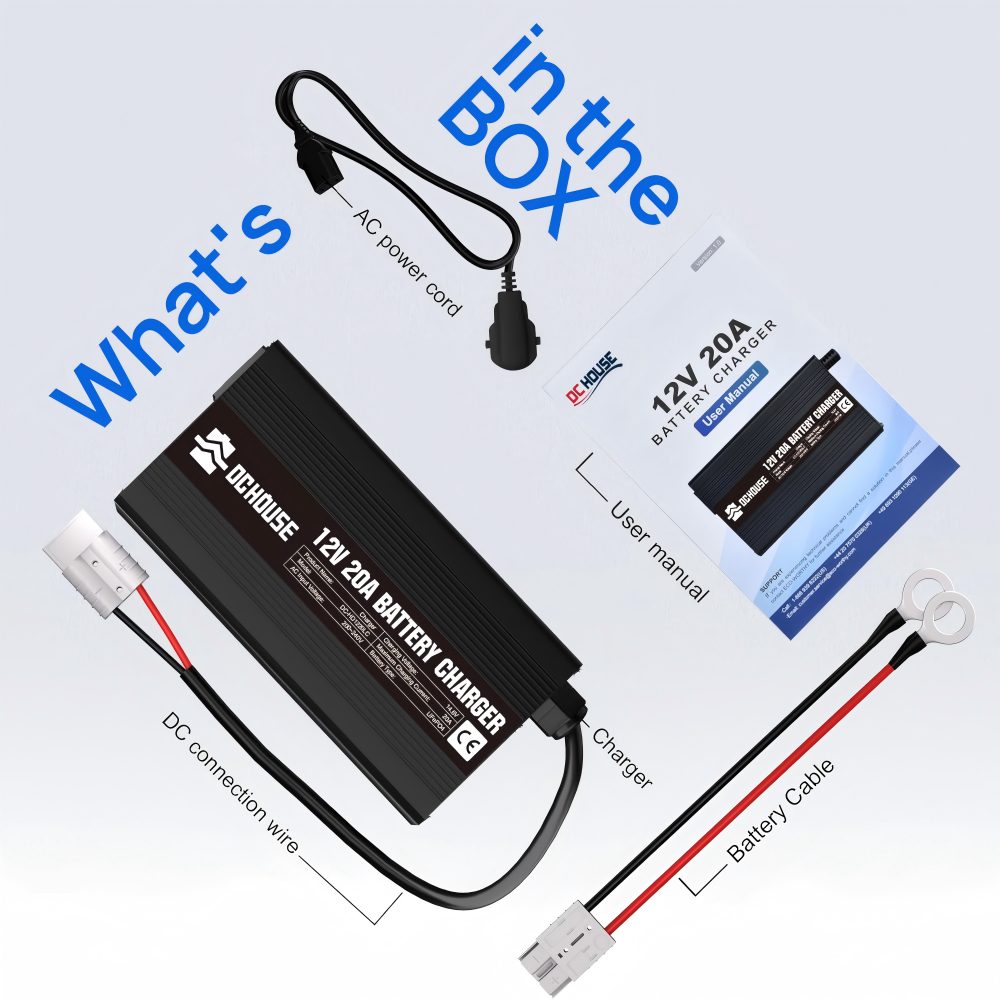

1. Unpack the charger, the battery cable with ring terminals, the quick connector and the printed quick-start sheet, and check the cable insulation before it goes anywhere near a battery.
2. Set the charger on a dry, flat surface close enough that the battery cable reaches the posts without being pulled tight, with the fan grille unobstructed.

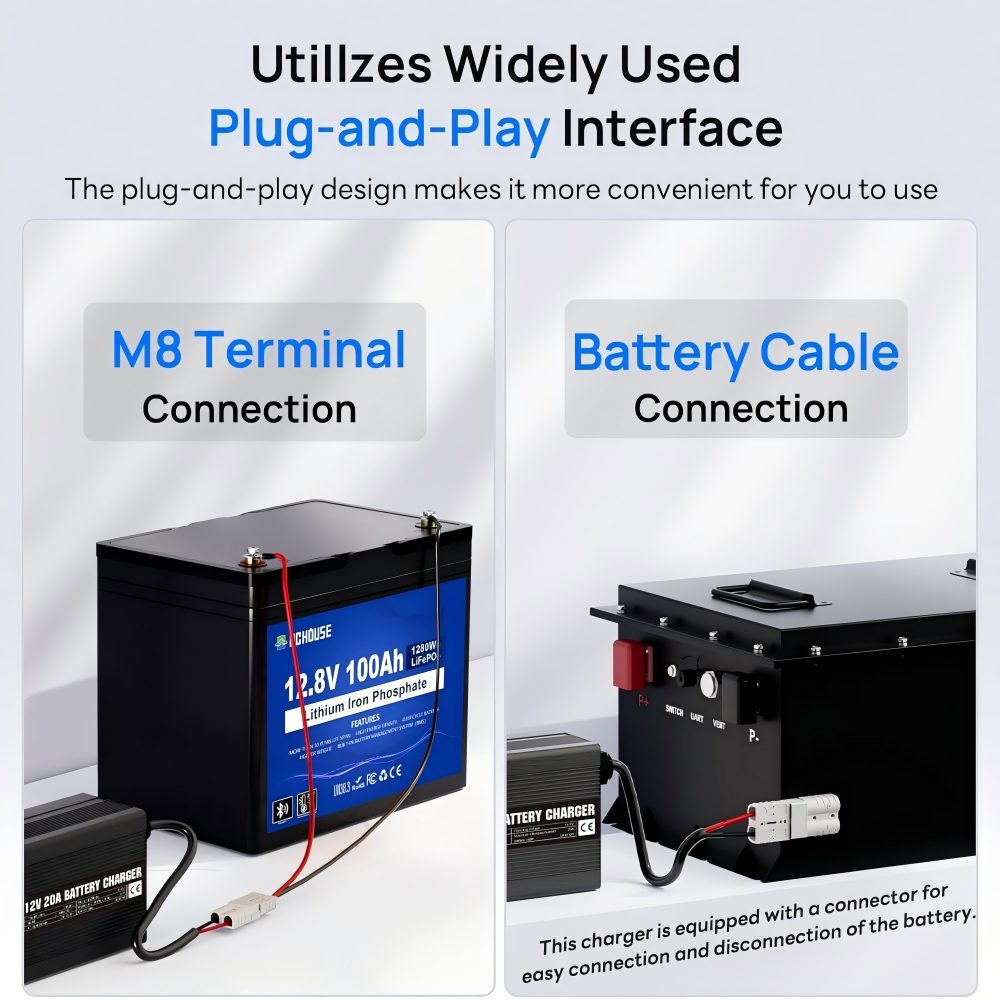

3. Identify the positive and negative posts — M8 studs on most marine deep cycle battery installations — and clean off any white crust before you fit anything.
4. Bolt the red ring terminal to positive and the black one to negative, then check both are tight; a loose joint on a 12 volt deep cycle battery heats up quickly under 20A.
5. Push the two halves of the quick connector together until they seat, plug the AC cord into a 200–240V outlet and switch the unit on.
6. Watch the light: red while current is flowing, green once the pack is full or when nothing is connected at the far end.
7. To finish, switch off and unplug the AC cord first, then release the quick connector — never pull the connector apart while the charger is working.
8. Leave the ring terminals on your 12V deep cycle battery between sessions so the next charge is a five-second job rather than a fifteen-minute one.

Charger Range Comparison

Boat, RV & Off-Grid Use

• Trolling motor and boat electrics. The pack comes back from a day on the water, the ring terminals are already on the posts, and a deep cycle marine battery charger that lives in the dock box puts it right before the next trip.
• Camper, caravan and motorhome banks. A deep cycle RV battery running lights, a fridge and a water pump gets flattened over a weekend; this charger brings it back in an evening instead of a day and a half.
• Off-grid cabin and solar 12V circuits. When the panels have had a grey week, mains charging through this unit tops the bank back up before the next stretch of cloud.
• Backup and emergency packs. A 12V pack kept for a sump pump, a portable fridge or storm lighting stays usable when it can be properly recharged at home.
• Workshop rotation. Several 12V packs in and out of the same corner is exactly what the quick connector was designed for — one cable stays on each battery.
• Rental and fleet turnaround. Boats and campers that change hands every few days need a charger that recovers a pack between customers rather than overnight.
• What it pairs with. A 12V 100Ah or 200Ah LiFePO4 pack is the natural companion. Golf cart packs run at 36V or 48V and need a charger built for that voltage, so they do not belong on this unit.

Specifications

Use & Care

Keep the air path open. The ribbed metal housing is part of the cooling, so do not bury the charger under a jacket or a boat cover while it is working, and leave a hand's width of space around the fan grille.

Do not treat it as a universal charger. A 12 volt deep cycle battery in lithium iron phosphate is the target; flooded lead-acid, AGM and gel packs need a different profile, and a starting battery is not a deep-cycle load at all.

Look at the ring terminals once a season. Corrosion or a loose bolt adds resistance, the charger works harder, and the pack charges more slowly than it should. Clean the posts, refit the terminals and check they are tight.

Route the battery cable so it does not lie across a hatch, a hot engine part or a sharp edge, and coil it loosely when the charger is not in use rather than kinking it behind the connector.

At the end of the season, unplug the AC cord, release the quick connector and store the charger indoors where it stays dry. The battery cable can stay on the battery if the terminals are protected.

Finally, be patient with a pack that has been in storage: bring it out, check the voltage, and let the wake-up routine run before you decide the battery is finished.

Ordering & Delivery

• Lead time. Stock items are dispatched in 3–7 days; custom orders take about 35 days.
• Shipping. Swift delivery from local stock, with 3–7 days for shipping once the order is on its way.
• Where it ships from. Stock is held in the USA, Europe and the UK, so the parcel starts close to the customer.
• Warranty. The charger is covered by a 5-year warranty.
• Returns. A 30-day return window runs from the day the parcel arrives.
• Before you order. Have the battery capacity and the terminal type at the battery end to hand, so we can confirm the supplied cable suits your installation.

About Our Company

Xinyubattery is the brand of Shenzhenshi Xinyu Newenergy Technology Co.,LTD, a Shenzhen-based company founded in 2016 and working in green power solutions for more than ten years. Through a vetted network of production partners, we bring a broad range of power products together in one place and consolidate each order for you. Products are checked before dispatch, packed for export and shipped from local stock, and our team stays available for technical advice, fitting questions and after-sales help.
