12V 6Ah Mini Lithium LiFePO4 Deep Cycle Battery for Solar and Lighting

Product Overview

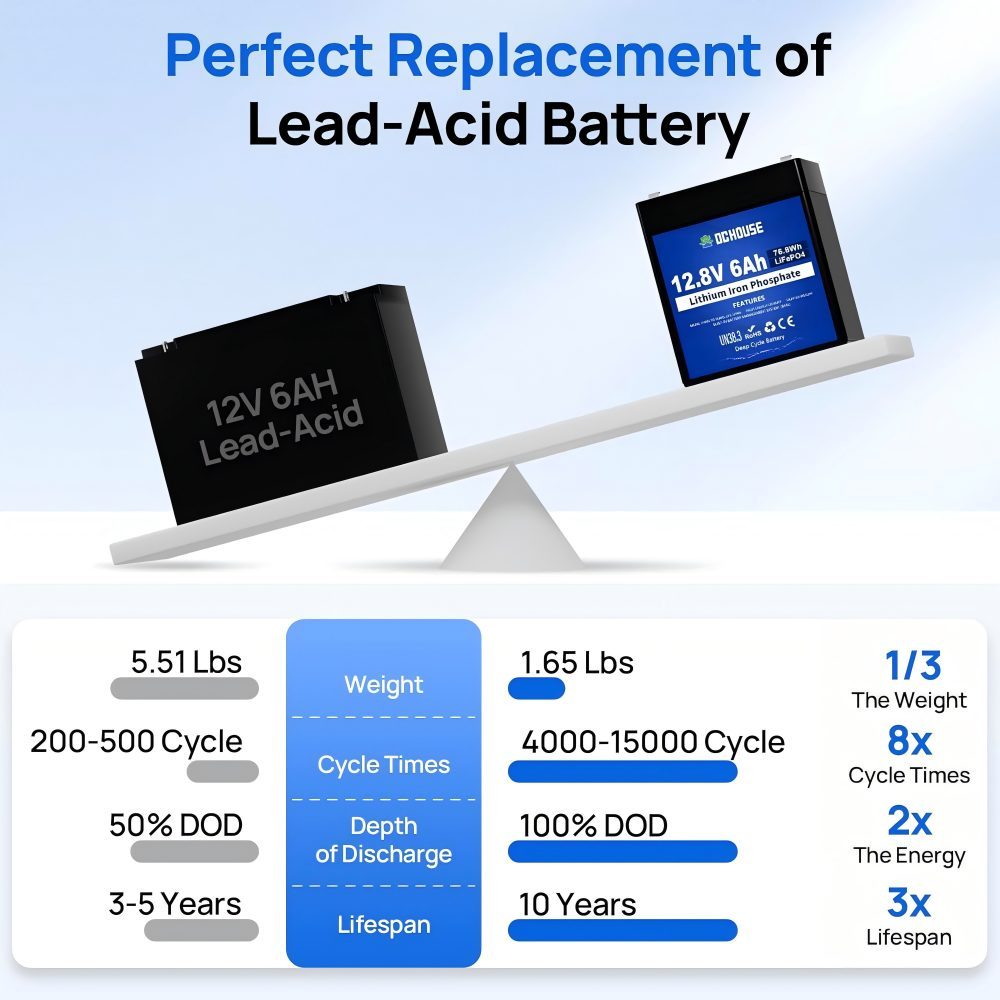

The 12V 6Ah Mini is the smallest block in our LiFePO4 range: a 12.8V, 6Ah deep cycle battery for devices that want a steady, low-current 12V supply rather than a crank of starting current. Fish finders, 12V LED lighting, children's ride-on cars, small solar setups and light backup duty are the jobs it was built for. As a 12V LiFePO4 battery it is lighter and longer-lived than the sealed lead-acid block it usually replaces, and it keeps working at a stable voltage instead of tailing off as the charge drops.

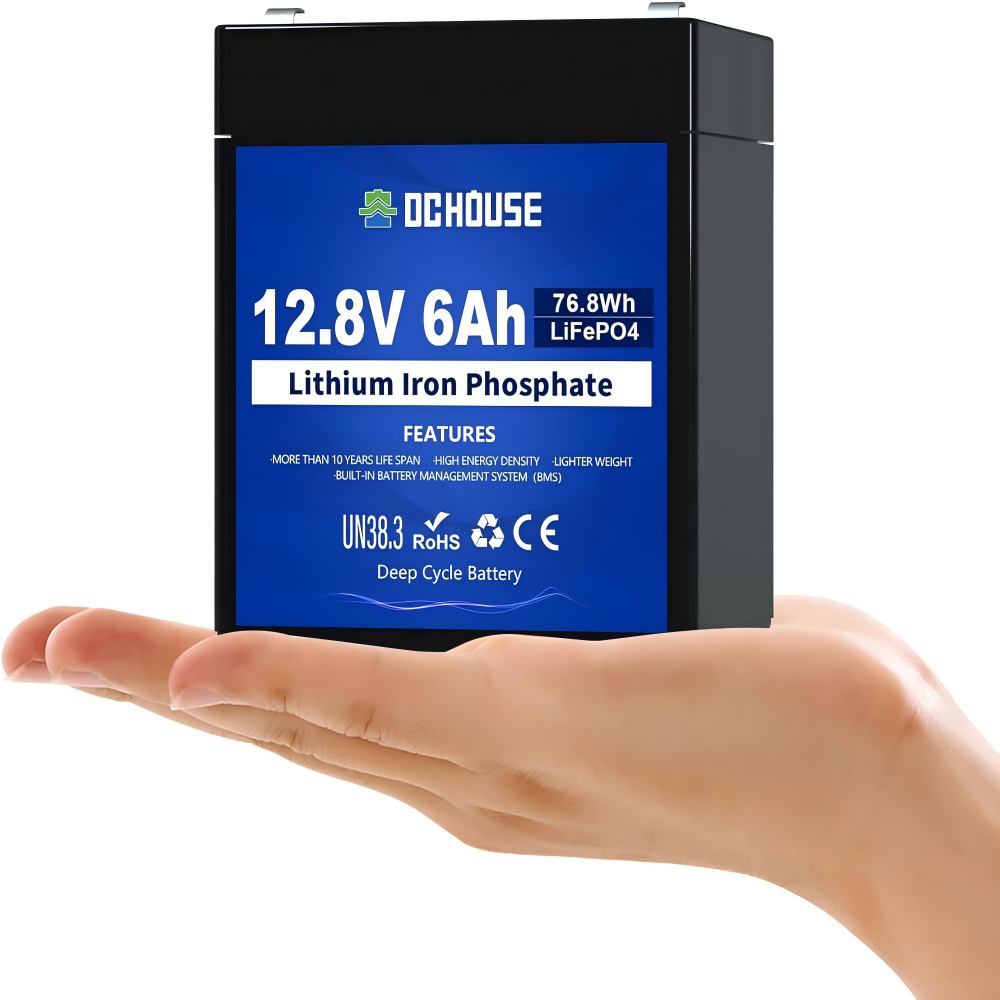

Most buyers are swapping something out — a 6Ah sealed block in a ride-on car, a lantern battery in a shed, a tired AGM pack in a fish finder. The footprint and the wiring are familiar, and the lithium block is light enough to lift out with two fingers, which matters on a kayak deck or halfway up a ladder.

Two things are worth checking before you order. It is a deep cycle battery, not a starter: it is not built for the surge of current an engine, generator, motorcycle, ATV or lawn mower asks for when you turn the key. And 6Ah is a working capacity, not an all-day one — if you were expecting a 12 volt deep cycle battery the size of a car battery, this is not it. Tell us the device, its voltage and its current draw and we will say plainly whether this unit will do the job or whether a larger block in the range is the honest answer.

Performance & Low Maintenance

The pack runs across a 10–14.6V operating window and holds close to its full voltage through most of it, instead of sagging away in a straight line the way a lead-acid block does. In practice an LED strip stays at the same brightness for the whole evening and a depth sounder keeps a clean reading until the last few percent, rather than getting dim or noisy halfway through the session. Continuous discharge is generous enough for lighting, electronics and small motors, and the short peak rating covers the brief inrush when a small motor or pump spins up — the kind of surge that trips a low-rated protection board and leaves you thinking the battery has failed.

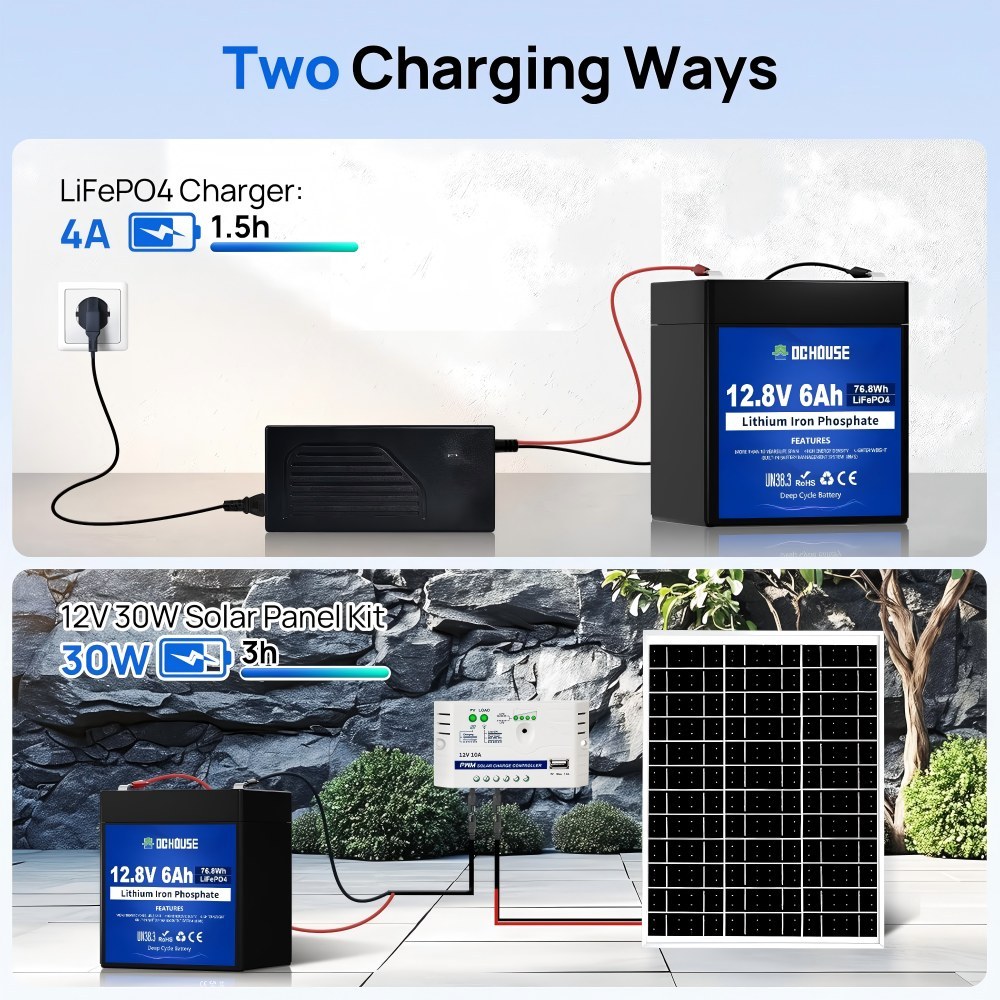

Charging a 12V LiFePO4 battery is straightforward. The standard rate is 3A, the maximum continuous charge is 6A and the charging voltage is 14.6V, so a full recharge from empty takes roughly two hours at the standard rate and about half that at the top rate. Charging is also where most small packs are damaged, so the charger profile matters as much as the current.

Day to day there is very little to do. A deep cycle lithium battery of this type self-discharges slowly, so it can sit in a shed or a boat locker for weeks and still have charge when you come back — no trickle charger and no topping up. There is no electrolyte to check, nothing to equalise and no acid mist to corrode the terminals. Cycle life depends on how hard the pack is worked: shallow discharges and moderate temperatures give you thousands of cycles, while running it flat and recharging hot will shorten that. Keep the terminals dry, keep the case out of standing water, and the block will comfortably outlast the lead-acid unit it replaced.

Specifications

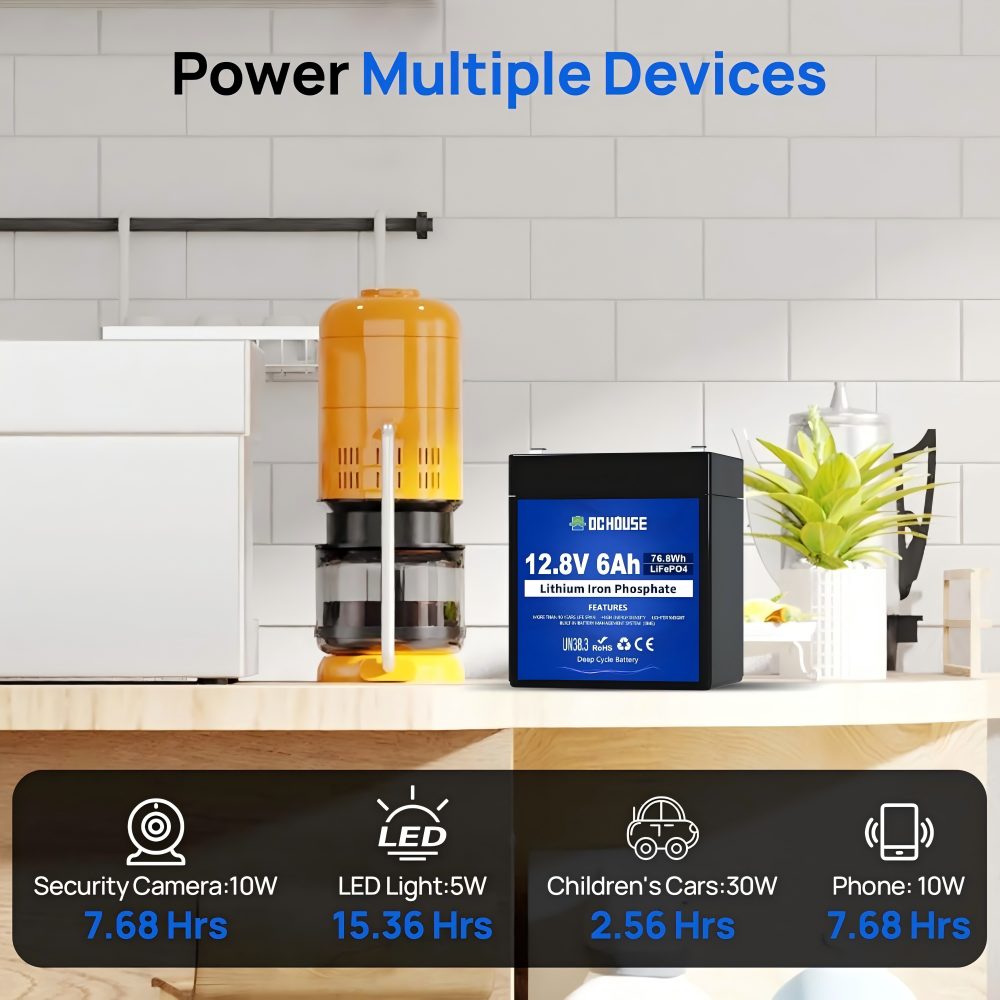

Use Scenarios

• Fish finders and sonar — a kayak, dinghy or ice rig does not want a heavy block on board; 6Ah runs a sounder for a session and keeps the display steady right down to the last bar.
• Shed, coop and greenhouse lighting — a 12V deep cycle battery like this one pairs with a small panel and a controller to run a few LED fixtures through the evening without trenching a mains cable.

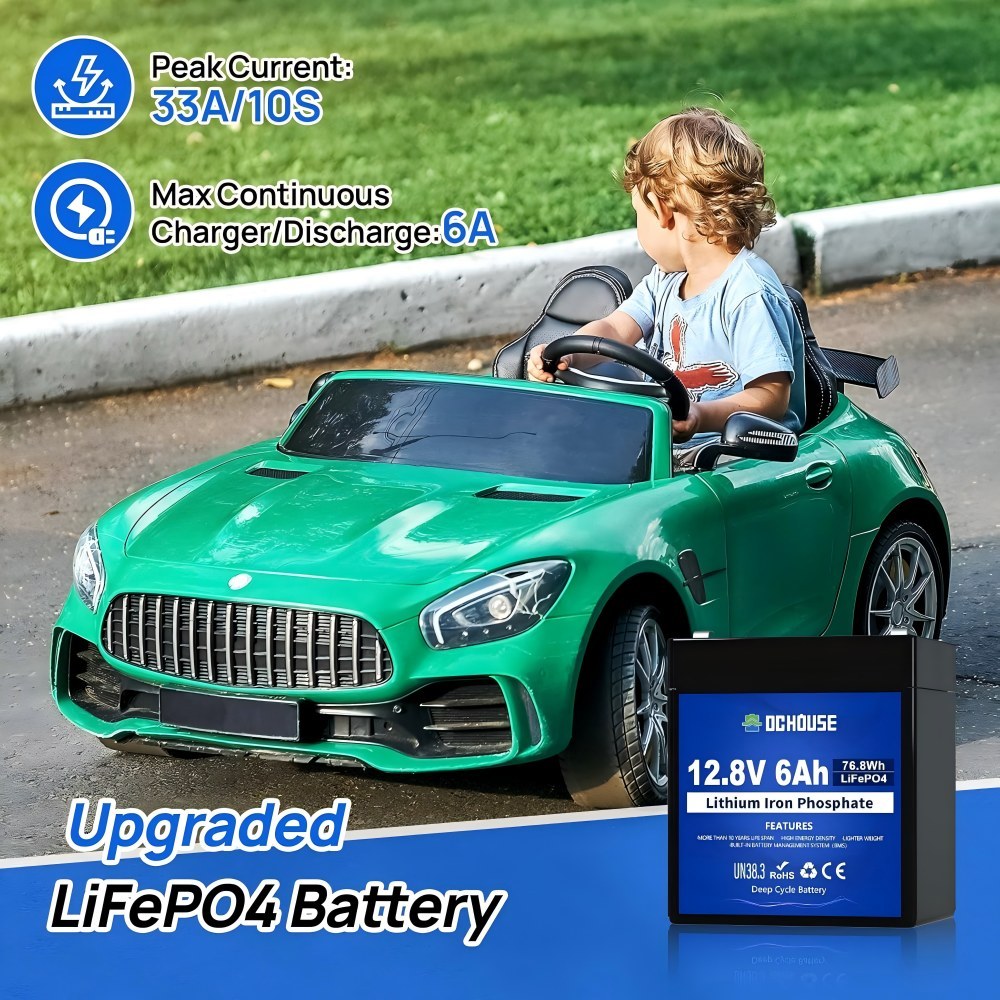

• Children's ride-on cars — normal running draws well under the continuous rating, and the surge when a child stamps on the pedal is covered by the short peak rating rather than cutting the car out.
• Gates, cameras and driveway alerts — a deep cycle battery 12v setup with a small panel keeps an electric gate or a security camera alive all week without a cable run to the house.
• Backup for small loads — a router, a radio, a work light or a phone charger during an outage, charged and waiting in a cupboard.
• Hobby and bench work — powering 12V test gear or a portable sounder away from a wall socket.
• Small pumps and sprayers — a 12V diaphragm pump for a garden sprayer or a light washdown draws far below the continuous limit, so a tank lasts as long as the battery does.

Off-Grid Solar Lighting

1. Mount the panel where it catches the most daylight and run two cores down to the controller. A shed or cabin lighting load does not need a large array — it needs one that is not shaded at midday.
2. Put a charge controller between panel and battery and set it to a LiFePO4 profile with a 14.6V charge voltage. The controller decides when to stop charging, and the wrong profile is the fastest way to shorten a pack's life.
3. Sit the battery in a sheltered, ventilated spot, off the ground and out of standing water. This deep cycle lithium battery stores the day's yield and gives it back after dark, so a cool, dry corner keeps it working through hot summers and frosty nights.
4. Wire the lighting circuit next: 12V LED fixtures on a switch or a dusk-to-dawn sensor, with the total draw comfortably inside the continuous limit. Because the pack holds its voltage flat, the LEDs stay at full brightness all evening instead of yellowing as the night goes on.
5. Design for the darkest week rather than the sunniest day. Two overcast days in a row will flatten a small array, so either add panel capacity or parallel a second block onto the bank before winter.
6. Expand in parallel as the site grows. A lithium deep cycle battery in parallel adds capacity at unchanged voltage, which is the most cost-effective way to take a cabin from one light to a room of lights without rebuilding the system.

RV & Camping Power

• Camper and motorhome auxiliaries — interior lights, a phone charger or a small fan, on a block that sits beside the main leisure battery rather than replacing it.
• Tent, swag and van camping — an LED strip, headlamps and a speaker for the evening without draining the vehicle battery you need in the morning.
• Daytime top-up from a folding panel — a portable panel and a small controller put back what the evening took, so a multi-day trip does not depend on mains power.
• Easy to move — a lithium deep cycle battery of this size weighs 0.75 kg (1.65 lbs), so it goes from the car to the tent one-handed and packs into the same crate as the lamp and the kettle.
• What it will not do at camp — a 12V compressor fridge or a mains inverter wants far more than 6Ah and will trip low-voltage protection; if that is the plan, step up to a larger 12V deep cycle battery in the range.

Modular Design & Expansion

1. Start with the case and the terminals. The sealed ABS housing is compact enough to drop into the tray that held a small lead-acid block and leave room around it, and the F1 spade terminals sit on the top face where the old leads already reach.

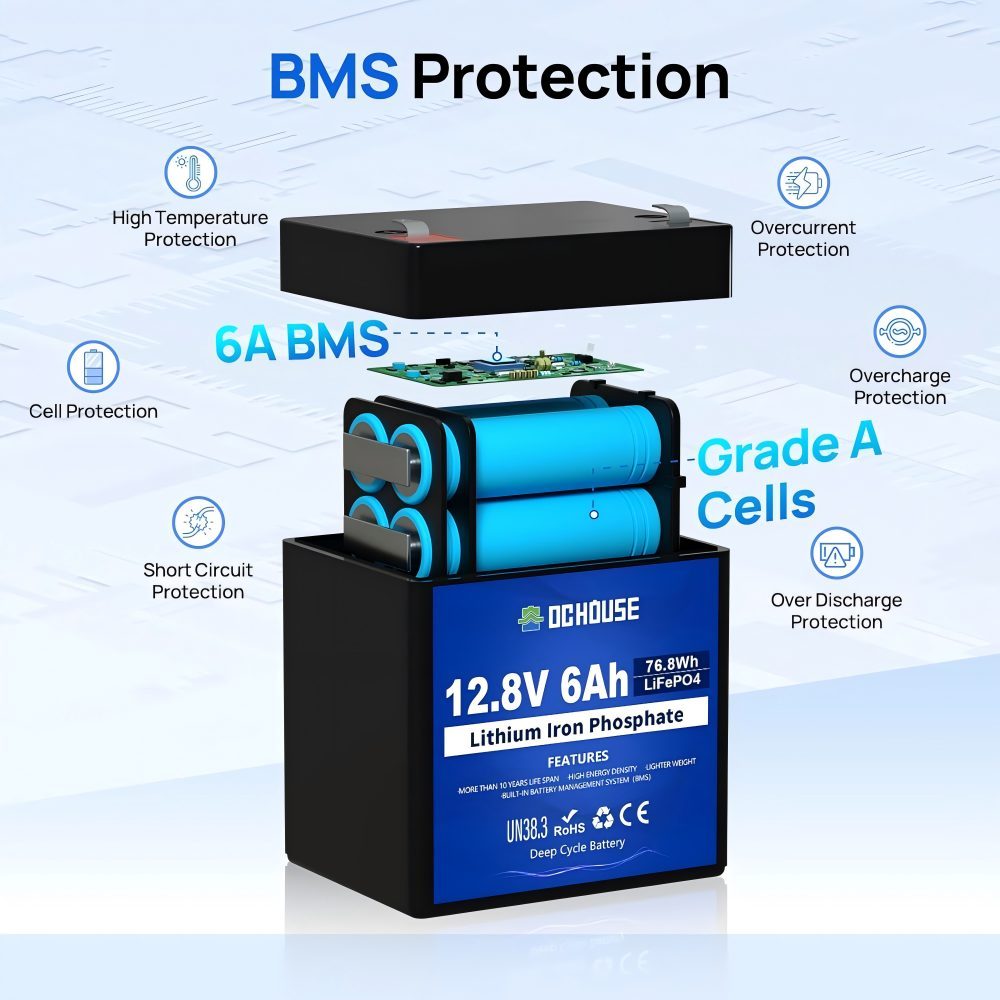

2. Check what is watching the cells. An integrated battery management board handles over-charge, over-discharge, over-current and short circuit inside the case, so the installation does not need a separate protection module — only the fusing you would fit on any 12V circuit.

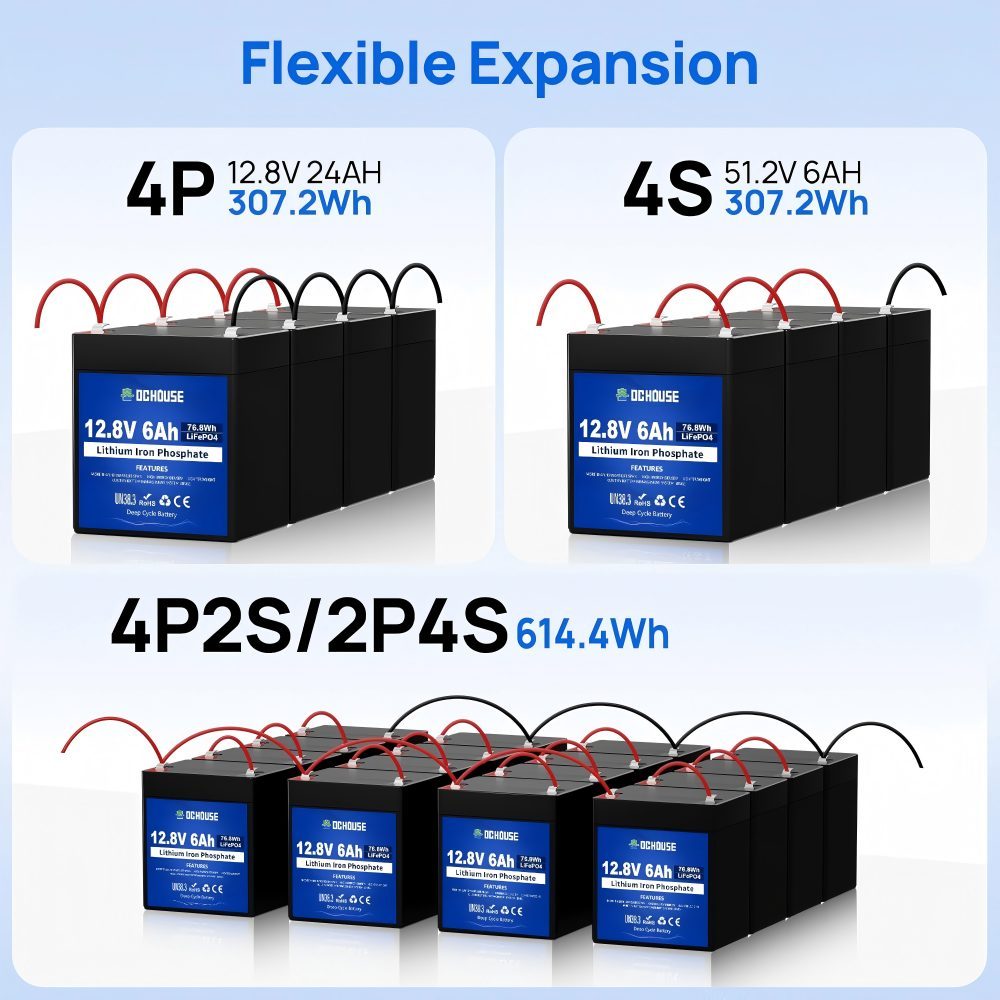

3. Set the voltage you need. Every unit is 12.8V nominal, so two in series give 25.6V, three give 38.4V and four give 51.2V, which is how a 24V, 36V or 48V device gets fed from these blocks.
4. Then set the capacity. Units in parallel add their amp-hours at the same voltage, so two in parallel roughly double the runtime of a single 12V deep cycle battery while the terminal voltage stays where the device expects it.
5. Combine the two when a project needs both, in layouts such as 2P2S, 2P3S, 2P4S, 3P2S and 4P2S — and stop at eight. The number of batteries wired in series and parallel at the same time cannot exceed eight, whichever arrangement you choose, so plan the bank around that ceiling rather than adding a ninth unit later.
6. Keep a bank uniform and charge it as one. A 12 volt deep cycle battery of a different age or model added to the string pulls every cell toward the weakest one, so use identical units, bring them into service at the same state of charge, and charge and discharge the pack together.

Ordering & Delivery
